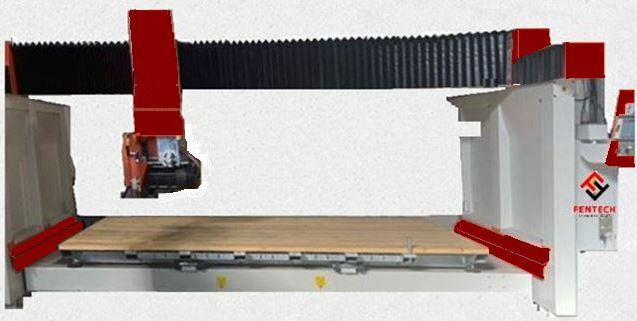

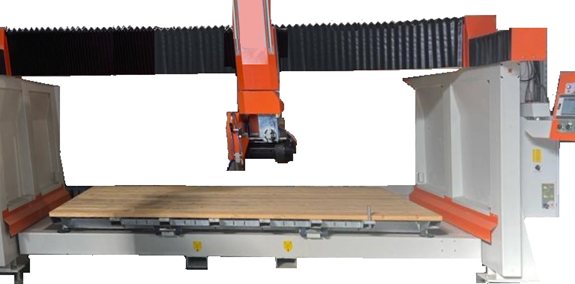

F-5 EASY

4+1 axes CNC BRIDGE SAW

TECHNICAL DATA

GET CONTROL INSTANTLY:
  - cut simply manually
  - set a few values for automatic sequences
  - program a full cnc cycle

Frame                            Monoblock, Gantry system
Dimensions overall        5250 x 2230 x 2880 (h) mm
Work table                     3200 x 2000 mm
Weight                           3100 kg

Work stroke axes           X=3500 mm Y=2100 mm  Z=250 mm
Work piece thickness     140 mm max.
Main motor                     8 kW (11 hp) 400V-50Hz 3-phase
Rotation speed               600 – 3000 rpm, inverter controlled
Blade guard                    Ø450 mm

A-axis                             0° ÷ 90° manual tilting
C-axis                             0° ± 180° automatic rotating
Axis motors                    brushless electro motors, up to 16 m/min. (rapid)

Laser                              green, highly visible cutting line

Control console             10” touch screen, commercial PC, Windows 10, Macro management
